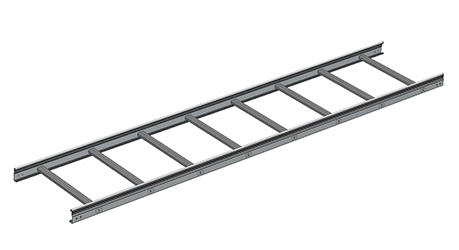

Aluminum cable ladder DS02

Code

A(mm)

B(mm)

DS02-100

100

74

DS02-200

200

174

DS02-300

300

274

DS02-400

400

374

The cable ladders are tested according to IEC 61537.
The cable ladders must not be used as walkways.

Introduction of related accessories

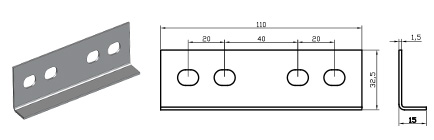

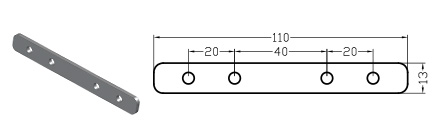

Jointer 60

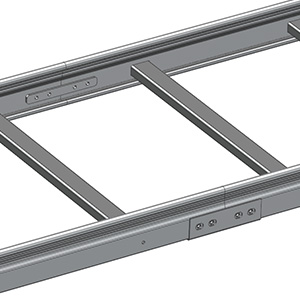

  • For straight, rigid jointing of cable ladders, bends, junctions and risers.

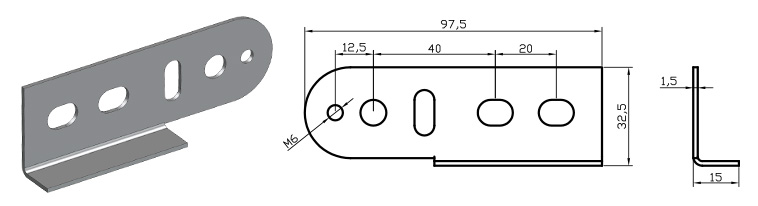

Coupling 60

Used for horizontal or vertical branches at any desired angle.

Use and installation

  • Coupling 60 is used for horizontal branching to the required angle. The cut length of the ladder ends determines the angle.

  • Coupling 60 is used to form vertical angles of the required size.

  • Coupling 60 is used to form vertical branches of the required angle.

  • Use 4 coupling 60 to form a horizontal bend in different angles. The cut lengths of the ladder ends determine the angle.

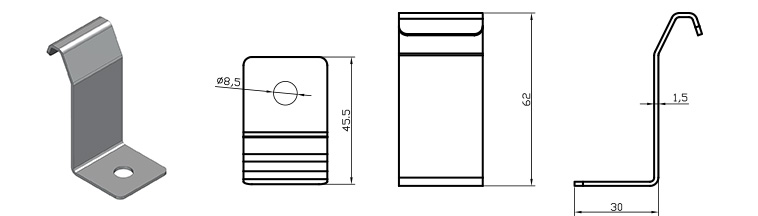

Profile clamp 60

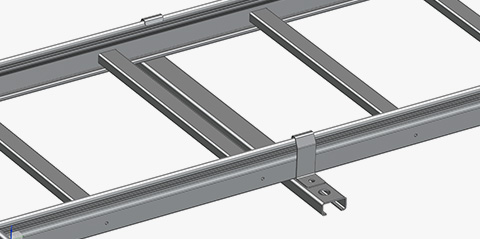

For installation where the cable ladder is to be fixed to cantilever arms, support brackets etc.

Use and installation

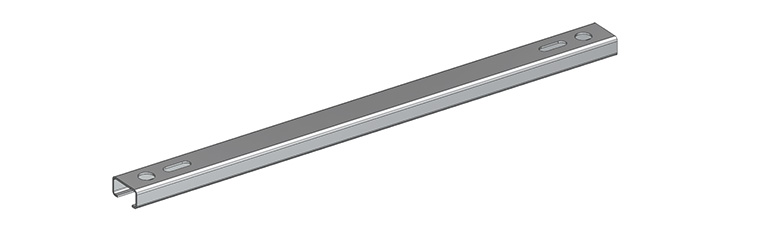

Support bracket
