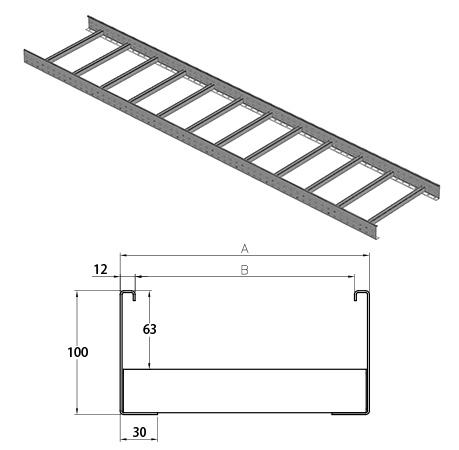

Steel cable ladder DS04

Code

A(mm)

B(mm)

DS04-300

300

276

DS04-400

400

376

DS04-500

500

476

DS04-600

600

576

DS04-800

800

776

DS04-1000

1000

976

DS04-1200

1200

1176

The cable ladders are tested according to IEC 61537.
The cable ladders must not be used as walkways.
Side rail thickness can be determined by customer. Rung quantity per meter is optional.

Introduction of related accessories

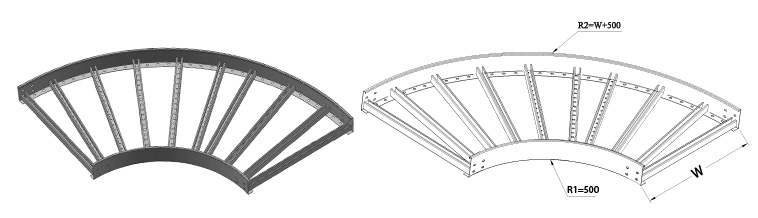

Horizontal 90°elbow 100

Attaches to straight section and/or fittings to create a 90° horizontal elbow from a straight horizontal run.

Side rail thickness equal to straight section.

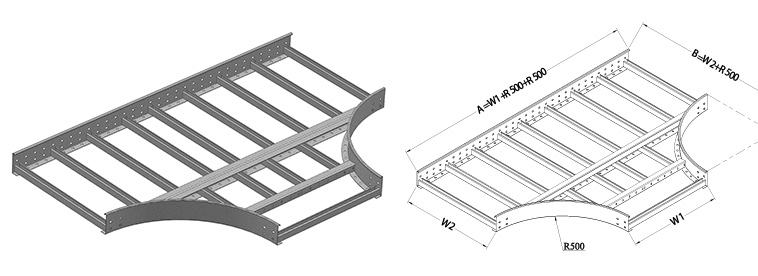

Horizontal Tee way 100

Attaches to straight section and/or fittings to create a 90°horizontal branch from a straight horizontal run.

Side rail thickness equal to straight section’s.

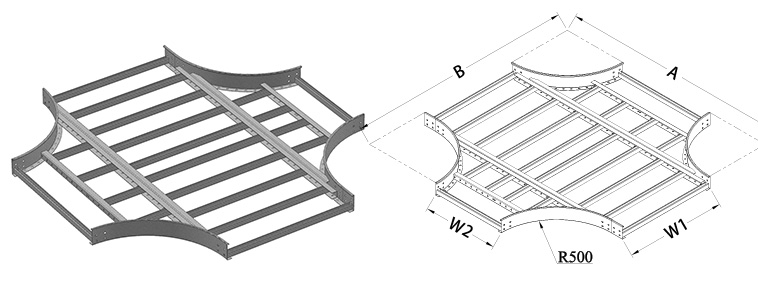

Horizontal cross 100

Attaches to straight section and/or fittings to create a horizontal four way cross intersection with two exits.

A=500+500+W2, B=500+500+W1.

Side rail thickness equal to straight section’s.

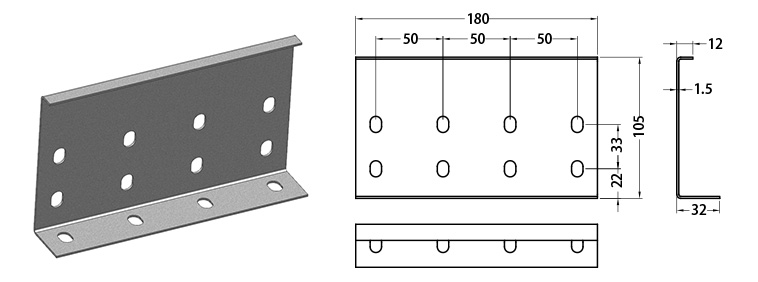

JOINTER 100

For straight, rigid jointing of cable ladders, bends, junctions and risers.

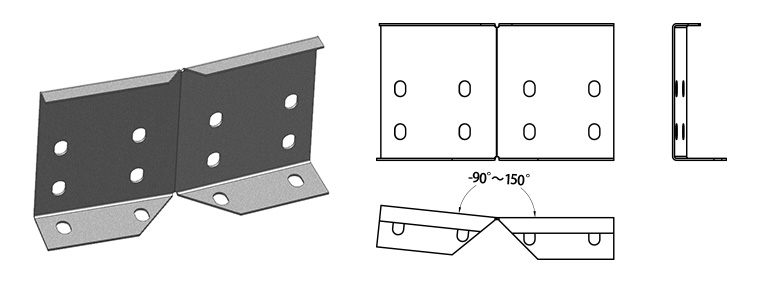

Adjustable jointer 100

Attaches to 2 straight sections to create an elbow with the angle that you need.

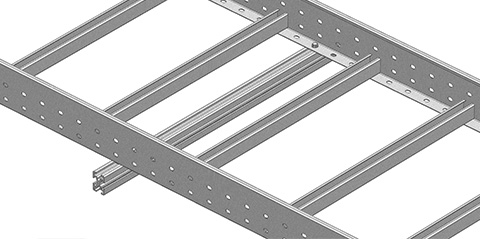

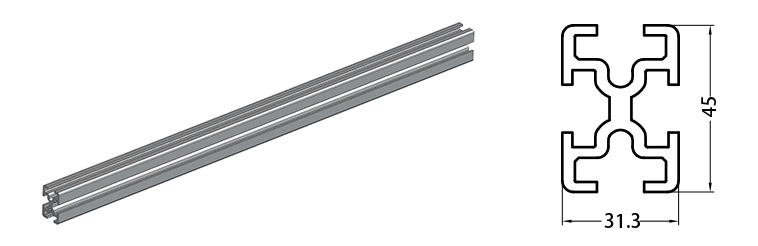

Support bracket DX

Use and installation
