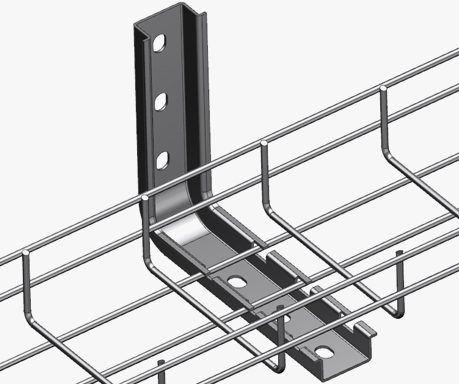

Wall T-Bracket

Used to mount to wall with expansion bolt.

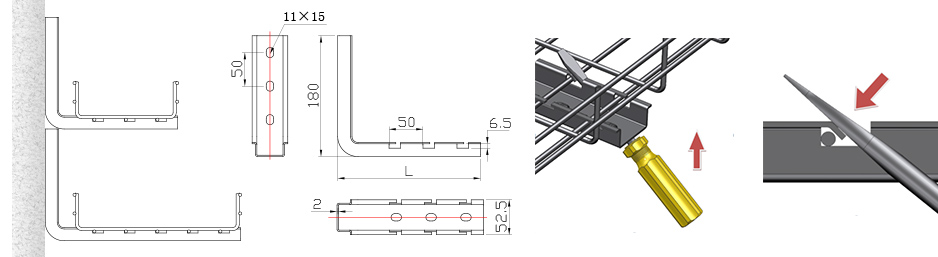

Ensure the distance between the wall
Can be use to construct multi-storey bridge.
Matching the arm- length with the width of the wire tray.
Can be sold individually.

Item Name

Wire tray Width

Arm Length

Weight

Electroplate

HDG

Powder Coating

304 Stainless Steel

316L Stainless Steel

lbs

kg

W100 Wall T-Bracket

100

160





BF611

BF612

BF613

BF614

BF615

W150 Wall T-Bracket

150

210





BF621

BF622

BF623

BF624

BF625

W200 Wall T-Bracket

200

260





BF631

BF632

BF633

BF634

BF635

W300 Wall T-Bracket

300

360





BF641

BF642

BF643

BF644

BF645

W400 Wall T-Bracket

400

460





BF651

BF652

BF653

BF654

BF655
